Open Access

Role of plant MicroRNA in cross-species regulatory networks of humans

BMC Systems BiologyBMC series – open, inclusive and trusted201610:60

https://doi.org/10.1186/s12918-016-0292-1

Received: 27 April 2016

Accepted: 22 June 2016

Published: 8 August 2016

Abstract

Background

It has been found that microRNAs (miRNAs) can function as a regulatory factor across species. For example, food-derived plant miRNAs may pass through the gastrointestinal (GI) tract, enter into the plasma and serum of mammals, and interact with endogenous RNAs to regulate their expression. Although this new type of regulatory mechanism is not well understood, it provides a fresh look at the relationship between food consumption and physiology. To investigate this new type of mechanism, we conducted a systematic computational study to analyze the potential functions of these dietary miRNAs in the human body.

Results

In this paper, we predicted human and plant target genes using RNAhybrid and set some criteria to further filter them. Then we built the cross-species regulatory network according to the filtered targets, extracted central nodes by PageRank algorithm and built core modules. We summarized the functions of these modules to three major categories: ion transport, metabolic process and stress response, and especially some target genes are highly related to ion transport, polysaccharides and the lipid metabolic process. Through functional analysis, we found that human and plants have similar functions such as ion transport and stress response, so our study also indicates the existence of a close link between exogenous plant miRNA targets and digestive/urinary organs.

Conclusions

According to our analysis results, we suggest that the ingestion of these plant miRNAs may have a functional impact on consuming organisms in a cross-kingdom way, and the dietary habit may affect the physiological condition at a genetic level. Our findings may be useful for discovering cross-species regulatory mechanism in further study.

Keywords

miRNA Cross-species regulation Core module Functional analysis

Background

As a novel mechanism of coevolution, cross-kingdom interactions have recently been discovered in many studies [13]. Cell communication can cross species through transmitting signals such as hormones, cytokines and small RNAs (sRNAs) [1]. For instance, Pseudomonas aeruginosais, a symbiotic gram-negative bacterium, can produce HSL autoinducers to modulate gene expression in humans [2]. Some of these autoinducers activate epithelial cells to induce generation of neutrophil chemotatic factors and then, these migrated factors will be triggered to produce toxin which are detrimental to the bacteria [2]. Meanwhile, some hosts’ miRNAs can also influence these bacteria. miR-451 and let-7i, which are highly enriched in human HbAS and HbSS erythrocytes, can negatively regulate the growth of the malaria parasite Plasmodium falciparum [4]. Certain Botrytis cinerea small RNAs (Bc-sRNA), like Bc-siR3.1, can silence Arabidopsis and tomato genes to inhibit their hosts’ immunity [3]. It is also reported that milk-derived miRNAs can target infants’ specific transcripts that are involved in cytokines and immunity [5]. Such a cross-species communication also exists in virus-host interaction. Studies have shown that viruses can utilize the hosts’ miRNA machinery to produce their own miRNAs, and further manipulate both virus and host gene expression [6]. Similarly, a cluster of cellular miRNAs, including miR-28, miR-125b, miR-150, miR-223 and miR-382, target the 3′ ends of HIV-1 mRNAs in cultivated resting CD4+ T cells to affect HIV-1 latency, and potently inhibit HIV-1 production [7]. Recently, Zhang et al. [8] reported that the exogenous plant miRNA, miR168a, which is enriched in rice, could target the human/mouse low-density lipoprotein receptor adapter protein 1 (LDLRAP1) mRNA, and inhibit LDLRAP1 expression in the liver. Further research [911] has also demonstrated that a variety of exogenous plant RNAs can be found in plasma and serum of mammals through ingestion.

Though more and more exogenous plant miRNAs are experimentally detected in the serum and plasma of human and animals, cross-kingdom regulation of human gene by plant miRNAs is not well understood. It is unclear how exogenous miRNAs evade the RNases and phagocytosis, and maintain stable structures and activity in a low-pH environment when passing through the mammalian gastrointestinal tract to reach the target organs. However, all the above evidence suggests that dietary miRNAs might remain active to regulate the ingesters’ specific genes. Although a number of experimental studies have demonstrated the discoveries of cross-species miRNA regulation, the effect of this event and the underlying mechanism are still unclear. Due to the complexity of sRNAs-mRNAs regulations, current experimental studies have some limitations in filling the gaps of those mechanisms. Hence, we carried out a computational study to exploit the functions and effects of plant-mammal cross-kingdom regulations, given the assumption that exogenous miRNAs exist in plasma and serum of mammals. For this purpose, we systematically predicted the targets of the documented cross-species miRNAs, and we conducted function enrichment analysis of the target genes in both humans and plants, by which we could explore the gene sets’ shared functions, such as similar pathways, regulators, or related diseases. In particular, we gathered 25 plant miRNAs, which have been detected in the serum and plasma of human and animals. We collected the entire human mRNAs 3′UTR regions from the UTRdb [12] and predicted the targets of the 25 plant miRNAs from these regions. Interestingly, we found that our predicted cross-species targets might have a close association with the digestive, urinary organs and the daily human metabolic Gene Ontology (GO) process. In order to better understand the functions of the above 25 miRNAs, we also evaluated their targets in plants as a reference. Due to lack of experimental validations on targets and high-quality gene function annotations for common food crops, we used Arabidopsis thaliana for plant target prediction and functional analyses. We found the Arabidopsis targets share some functional similarity to human targets. Our study might provide some useful hypotheses for discovering the cross-species regulatory mechanism in future research.

Results

Target prediction on human and Arabidopsis for 25 miRNAs

Due to the limitation of existing studies, it is difficult to exactly define the matching model between plant miRNAs and human targets. Given the notion that most mature miRNAs act as the RNA interference (RNAi) mechanism by binding to certain sites on target mRNAs in both plants and animals [13], we took a basic target prediction approach to retain the maximum potential targets on humans by using RNAHybrid [14] (see Methods). Meanwhile, we used the same protocol to predict the miRNAs’ targets in Arabidopsis thaliana for comparative analysis and then, we achieved an initial dataset with nearly 380,000 possible human targets and 5700 Arabidopsis targets. After a screening process conducted by selecting filtering parameters regarding targeting attributes, such as the minimum free energy, p-value, the length of bulge and loop and so on, finally about 3000 human and 1800 plant targets were selected for further study.

Predicted target validation on Arabidopsis

In order to verify the reliability of our target prediction method, we collected 170 validated Arabidopsis targets of these 25 miRNAs from TAIR [15] and PMRD [16]. The results of the Arabidopsis target prediction not only showed a high consistency but also shared the exact same binding regions (coding DNA sequence (CDS) or 3′UTR) with validated targets. Out of 170 validate targets, 135 (81.8 %) ranked within the top 50 of each miRNA. More strikingly, 123 out of 170 validated targets ranked in the top ten among the predicted targets. For example, miR156 and miR157 are from the same family, which mainly target SQUAMOSA-promoter binding protein-like (SPL) genes’ coding sequence in Arabidopsis thaliana, except for SPL3, 4, 5 located in the 3′UTR [17, 18]. It is reported that members of a plant miRNA gene family often share high sequence similarity and the target site [19]. As shown in Table 1, not only the filtered target genes and the target regions are consistent with this report, but also all validated targets rank on top of predicted targets.
Table 1

miR156 target validation

Validated target genes

Accession number

mRNA

Primary targets

Refined CDS targets

Rank

Refined 3′UTR targets

Rank

CDS

3′UTR

CDS

3′UTR

SPL2

AT5G43270

Y

Y

Y

N

Y

6

N



SPL3

AT2G33810

Y

Y

N

Y

N

-

Y

1

SPL4

AT1G53160

Y

Y

N

Y

N

-

Y

2

SPL5

AT3G15270

Y

Y

N

Y

N

-

Y

3

SPL6

AT1G69170

Y

Y

Y

N

Y

5

N



SPL9

AT2G42200

Y

Y

Y

N

Y

2

N



SPL10

AT1G27370

Y

Y

Y

N

Y

4

N



SPL11

AT1G27360

Y

Y

Y

N

Y

3

N



SPL13-1

AT5G50570

Y

Y

Y

N

Y

7

N



SPL13

AT5G50670

Y

Y

Y

N

Y

8

N



SPL15

AT3G57920

Y

Y

Y

N

Y

1

N



We examined whether the validated genes exist in the original mRNA dataset, the primary predicted target set by RNAHybrid, and the refined targets after screening. We also listed the rank of each validated target in our refined target set, which is sorted by minimum free energy (MFE) and p-value.

Reconstruction of cross-species regulatory network

We extracted experimentally verified interactions and signaling networks/pathways for our 531 filtered targets (see Additional file 1) using GeneMania [20], and then created a primary regulatory/interaction network containing 782 genes and 2444 interactions in total (Fig. 1).
Fig. 1

Integrated network of human target genes. The nodes with bigger size represent the bridge genes (AXIN1, SRM, DENND1A, ACTN4, C3orf18, TMED1, KAT5, and SYNGR1) in the reconstructed network

The PageRank algorithm was adopted to assign weights to the 531 nodes and thereby measure their importance. The results were convergent after 25 iterations (Additional file 2: Figure S1), when the perturbation of the weights could be controlled within 0.005. Then, we selected the top 15 nodes as the bridge genes to reconstruct the initial network by extracting modules. We extracted 11 modules by taking the bridge genes as the central nodes to decompose the whole network, which can be regarded as a critical link in the biological network.

Three functional categories of modules

In our study, functional enrichment analysis was applied to the above modules individually using Mosaic and NOA Cytoscape apps [21, 22] and DAVID [23], and we found seven modules highly enriched in certain functions. These modules could be classified into three functional categories: 1) Transport: ion transport and homeostasis process, 2) Other metabolic process: macromolecule biosynthetic and metabolic process and 3) Stress response: immune and stress response (Table 2). Major commonly enriched biological processes functions of the main modules are shown in Fig. 2 (M9, M10 and M11 are excluded, since none of the listed functions are enriched in these modules). The ion transportation and homeostasis process includes chemical, di- and tri-valent inorganic compounds (such as boron and sulfur), which are often enriched in fruits, leafy vegetables, and cereal. Metal cations such as iron, calcium, and sodium are also present. All of these compounds are closely linked with dietary habits. Meanwhile, we found a tight connection between the predicted human tissue targets as they relate to fatty acids, amino acids, alcohol, glycerolipids, cellular polysaccharide, and oxoacid metabolic processes. For the response process, one is the metal ion, inorganic ion and the nutrient substance related response, and the other is a type of defense response to the external stimulus, such as virus, bacterium and wounding. For the immune process, the identified modules show positive regulation of leukocyte and lymphocyte activation with response to the immune effector process as well as inflammation. M6 is related to vesicle targeting and transportation as well, which has been regarded as a carrier of the uptake miRNAs in the human body.
Table 2

Parts of the functions of selected modules

Function

Specific process

BP accession number

Module

Transport

iron ion homeostasis

GO:0055072

M1, M3

calcium ion transport

GO:0006816

M6

vesicle-mediated transport

GO:0016192

M8

vesicle targeting, to, from or within Golgi

GO:0048199

M8

vesicle targeting

GO:0006903

M8

regulation of sodium ion transport

GO:0002028

M8

Other metabolic process

glycerolipid biosynthetic process

GO:0045017

M4

biogenic amine metabolic process

GO:0006576

M4

alcohol metabolic process

GO:0006066

M4

cellular polysaccharide biosynthetic process

GO:0033692

M4

polyamine metabolic process

GO:0006595

M5

fatty acid biosynthetic process

GO:0006633

M7

fatty acid metabolic process

GO:0006631

M7

Stress response

innate immune response

GO:0045087

M1, M2

inflammatory response

GO:0006954

M1, M2

response to molecule of bacterial origin

GO:0002237

M2

response to wounding

GO:0009611

M2

response to chemical stimulus

GO:0042221

M2,M7

leukocyte chemotaxis involved in inflammatory response

GO:0002232

M2

response to ethanol

GO:0045471

M4

response to heat

GO:0009408

M7

response to temperature stimulus

GO:0009266

M7, M8

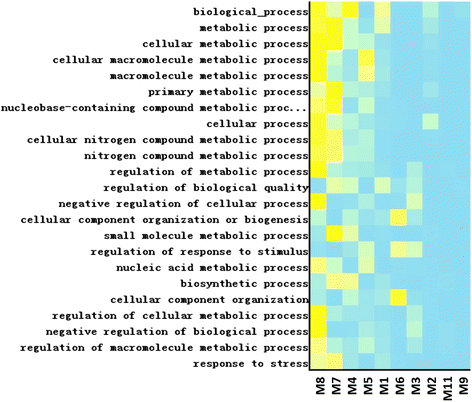

Fig. 2

Heatmap of common biological process functions in different modules

Functional analysis of tissue-specific predicted human targets

The range of the protein expression level varies greatly in different tissues; thus, we took tissue specificity as a basis to measure our targets, which could largely reduce the false positive rate of the predicted results. To investigate the relationship between our cross-species targets and the eight tissues (brain, heart, kidney, liver, lung, spleen, stomach, and small intestine), we categorized our target genes into three levels, the ubiquitous level (house keeping genes, HKG), for which genes would express in most of the tissues; highly expressed level, meaning these genes would have a high expression level in several but not all tissues; and the tissue-specific level, which can be specifically expressed within one certain tissue. To characterize the set of three-level expressed genes that we had identified, we conducted functional enrichment analysis, and for the third level we collected verified specific gene sets of the eight tissues from TisGed [24] as the background. The protein products of the first level expressed genes were more likely to be involved in the actin filament-based process, ion transport and signaling (calcium, sulfate, and organic anion), metabolism process such as those found in macromolecule (polysaccharide, carbohydrate, alcohol, and ATP) biosynthetic and metabolic processes, general cell morphogenesis and apoptosis processes, and vesicles localization and targeting.

As shown in Fig. 3, genes with a specific tissue expression level in the brain and heart were more likely to be connected with general cell development as well as the neurological system related process, and cardiac muscle tissue morphogenesis. While the second and third level targets in kidney, liver, and spleen were often involved in specialized biological processes, like metal ion transportation, homeostasis and response in kidney, immune system process and wounding response in spleen, alcohol and macromolecule metabolic processes, and insulin signaling pathway, as well as the catabolic process in the liver, which suggests a high enrichment both in the digestive and urinary system, and also indicates a close link between our targets and these systems.
Fig. 3

Function distribution of the high level targets among five tissues. Pie graphs show fractions of cellular Biological Processes (BP) derived from genes belonging to the second expression level in six human tissues. Names of BP categories are shown at the right. a The BP terms of brain and heart are more likely to be related with regulation of cell proliferation. b For liver, kidney and spleen, functions related to transportation, the metabolic processes and immune-related processes are highly enriched

Functional similarity: ion transport and stress response between Arabidopsis and human

As Arabidopsis and human are two very different species, there is no established method to compare gene functions of them and no single cross-species platform or algorithm can perform the pathway analysis on both Arabidopsis and human. The “functions” mentioned in this paper refers protein functions annotated in Gene Ontology. According to our enrichment analysis results (Additional files 3, 4 and 5), ion transport and stress response exist in most modules from both Arabidopsis and human. In plants, there are two ways to acquire iron ions: based on iron reduction and iron chelation. Arabidopsis activates the reduction-based strategy of Fe uptake upon Fe deficiency, and this process is partly induced by an acidification of the root hair zone through the extrusion of protons to solubilize Fe chelates; hence, this iron ion transport pathway can regulate the growth of root. Also, some transporters are expressed in shoots and seedlings. Fe distributes in three main organelles in cell: vacuole, chloroplast and mitochondria, and the iron ion transport process can influence mitochondrial respiration and chloroplast photosynthesis [25]. In Arabidopsis, the Fe uptake pathway appears to be regulated at the transcriptional and post-transcriptional level. At the transcriptional level, the transcription of IRT1genes is strongly up-regulated, IRT1 is the founding member of the large ZIP family [26], and our predicted target genes involved in metal ion transport include ZIP family gene. Two genes AtNRAMP3 and AtNRAMP4 are also involved in this pathway [27]. In human, extracellular Fe3+ is reduced to the more soluble Fe2+ by reductases embedded in the cell’s plasma membrane. The Fe2+ generated then becomes the substrate for two different uptake systems, a high-affinity system expressed in iron-limited cells and a low-affinity system active in iron-replete cells. The high-affinity system is just the same as in Arabidopsis. In the human iron transport pathway, some genes involved may influence organs such as livers and so on [25]. One mainly gene is NRAMP2 [28], and AtNRAMPs show homology to the NRAMP family [27]. We find a predicted target gene FER involved in human iron transport is also involved in the plant iron transport pathway according to our prediction result.

Plants and animals both suffer from external stimuli and pressure all the time, which helps them to constantly adapt to environmental stressors by improving the ability to respond to threats during evolution [29]. By applying the same module extraction and functional analysis method to our Arabidopsis targets (see Additional file 3), we found two aspects of stress response: 1) response to stimulus, (e.g., probable histone H2A variant 3), and 2) the more specific defense response as exhibited by the protein MOS2 resisting bacterium. The putative DNA repair protein RAD23-1 responds to DNA damage with stimulus reactions. The other defense response could be seen in the pyruvate dehydrogenase E1 component subunit alpha-2 and mitochondrial protein, which helps to repel salt stress and osmotic stress. Meanwhile, we found that predicted human targets could play a prominent role in both the stress response and immune process related to 106 relevant GO processes, of which 72 pieces are external response processes, which shows a high similarity to that of plants. Similarities can be seen in plant responses to metal ions, inorganic salt and unhealthy nutrient levels as well as starvation. All of these processes can be compared to biotic and abiotic stresses whose main factors are water and nutrients. We also found a high rate of external stimulus response in plants including cellular responses to molecules of bacterial origin, responses to lipopolysaccharides (LPSs), which are the main component of the gram-negative bacteria that can protect them from chemical attack. Gram-negative bacteria also respond positively to wounding and inflammation. Module M3/AXIN1 (Axis inhibition protein 1), which is associated with 26 genes, which involve myeloid leukocyte mediated immunity, activation of blood coagulation via a clotting cascade, glucagon secretion, and immune response-inhibiting signal transduction, which forms the immune system process.

Discussion

Arabidopsis and human are very different species, and it is hard to define “functional similarity” between them according to current computational tools and databases. We used three most comprehensive function/pathway databases, GO, KEGG and BioCyc to perform function enrichment analysis. We understand that most GO terms present very generic functions, but so far GO is the most comprehensive functional annotation database for both Arabidopsis and human. In KEGG database, the number of pathways for Arabidopsis and human are 133 and 299, and those pathways only covered 4818 and 6997 genes, respectively. Due to the unbalance of annotations between Arabidopsis and human, we cannot compare involved pathways between them. But according to our enrichment analysis results and literature search, we still find some interesting results, which infer that the pathways between Arabidopsis and human are not only common at the generic level, but also have a similar mechanism in the specific process.

According to our enrichment analysis results, one of the enriched functions is ion transport (GO: 0006811) in Arabidopsis and some GO terms about metal ion transport also exist in human, such as iron ion transport (GO: 0006826). In plants, iron is potentially highly toxic to cells, and hence, iron homeostasis needs to be tightly regulated. Similarly, dietary Fe deficiency affects many human beings on earth, leading to asthenia, increased sensitivity to diseases, and even death. We predict human targets using Arabidopsis miRNAs in our research, and then we find some predicted targets involved in iron transport process both in human and plant, such as FER. As we use Arabidopsis miRNAs to predict human targets, we find a predicted target gene FER involved in human iron transport, and this gene is also involved in the plant iron transport pathway.

Plants have to endure various stresses such as drought, salt, low temperature, etc. These adverse abiotic and biotic environmental factors force plants to develop their stress response mechanisms through cell signaling, genetic regulatory adaptation, and other defense responses. The human body can also respond to stresses and external stimuli, a state of perceived threat to homeostasis, by activating the immune system. In our research, we found that potential cross-species targeted by the exogenous miRNAs are highly related to the immune system and stress response process in the human body, such as the response to chemical stimulus and the defense response to bacterium. These responses are in the same category of the genes targeted by miRNAs in native plants. In other words, the exogenous miRNAs in humans may mimic the indigenous miRNAs in plants in terms of biological functions. So far, there exists no connection between these two response mechanisms. It is reported the stress response is generally transient because its accompanying effects can be harmful in the long term. However, if these exogenous miRNAs exist in the human chronically from the daily food consumption, they may have lasting evolutionary effects on a human population with similar food sources.

The cross-species regulatory mechanism was not proposed until 2012, and significant discussion (both pro and con) continues on the validity of this proposal. To the best of our knowledge—up to now—no validated method has been developed to predict miRNA targets across species for the exact binding site. Given the common mechanism of mature miRNAs:RNAi binding, we only applied basic target binding principles in our primary prediction step. Meanwhile, we used the same method to predict the Arabidopsis targets as a test benchmark. The significant consistency between our predicted plant targets and the validated ones for this benchmark strongly supports the effectiveness of our method and parameters. Our method tuned using Arabidopsis target validation gives a remarkable reduction of the noisy points in our data (Additional file 6: Figure S2) and, hence, provides a valid guidance to explore the new mechanism of cross-species miRNA targets.

Conclusions

In conclusion, we present a novel computational method to study the cross-species regulation between human genes and plant miRNAs. According to the target genes in both human and Arabidopsis we predicted for the same 25 miRNAs and the cross-species regulatory network we built, we summarized the functions to several major categories. From these functions, we found that there are some similar functions between human and plant target genes, such as ion transport and stress response. These findings may provide a hint of transcriptional regulatory interactions between human and plants through miRNAs. And it might point a new direction to understand the biological processes in human body through the cross-species regulatory mechanism in the future.

Methods

Plant species selection and original datasets

Related studies have detected miRNAs of Oryza sativa and Glycine max in animal serum, but we chose miRNAs in Arabidopsis thaliana for our analyses for the following reasons. A miRNA family often shares similar nucleotide sequences among different plant species. Arabidopsis is a model organism [3032], and compared with other plants, it has more data and annotations. A total of 25 Arabidopsis miRNA datasets and 35,173 mRNAs were retrieved from the Arabidopsis Information Resource (TAIR) [15] and PMRD [16], and 34,619 human 3′UTR were from UTRdb [12]. We observed that most of these 25 miRNAs widely exist in many plants with high expression levels (Table 3), which means that human can easily intake significant quantity from common plant foods.
Table 3

Expression levels of exogenous plant miRNAs in common plant foods

Exogenous miRNAs

Brassica napus

Glycine max

Oryza sativa

Sorghum bicolor

Solanum lycopersicum

Vitis vinifera

Zea mays

miR156a

2.72E+05

3.09E+02

2.98E+03

2.08E+03

1.24E+03

miR156g

2.72E+05

1.34E+03

NA

1.78E+03

572

miR157a

NA

NA

NA

NA

NA

NA

NA

miR157d

NA

NA

NA

NA

NA

NA

NA

miR159a

NA

5.91E+03

966

NA

8.02

6.41E+03

miR160a

1.32E+03

3.1

75.6

32.7

12.7

miR162a

NA

NA

NA

1.04E+04

NA

miR164a

3.99E+03

81.3

1.81E+04

301

88

miR164c

3.41E+03

22.9

NA

1.24E+04

51.1

miR165a

NA

NA

NA

NA

NA

NA

NA

miR166a

4.03E+04

643

2.92E+05

2.25E+04

8.00E+03

miR167a

1.51E+04

1.66E+03

1.42E+04

1.34E+03

1.29E+03

miR167d

1.57E+04

3.02E+03

NA

548

180

miR168a

3.58E+05

NA

NA

1.47E+05

miR169a

8.17E+03

387

47.4

23

318

miR169b

9.83E+03

120

NA

4.59

58.8

miR169h

NA

NA

NA

NA

104

NA

miR171a

3.24E+03

12.3

206

212

miR171c

2.71E+03

NA

85.3

536

17

miR172a

1.72E+04

6.44E+03

1.27E+04

8.6

73.3

miR172c

1.48E+04

91.3

NA

3.21E+03

5.28E+03

miR390a

NA

NA

2.83E+03

NA

236

miR394a

NA

155

NA

145

56.9

miR397a

827

NA

NA

1.25E+03

NA

miR408

NA

NA

790

8.50E+03

NA

1.69E+03

NA

Here the numbers represent the reads per million; “√” means that the miRNA is found in the species but its expression level is unavailable; ‘NA’ means that there is no evident to support this miRNA

Target prediction by RNAhybrid

RNAhybrid [14] was chosen as the target prediction tool with criteria of “seed region rules” (perfect nucleotide match at the core sequence that encompassed the first two to eight bases of the mature miRNA); the free energy of the hybrid was expected to be within the range of the authentic miRNA-target pairs, typically lower than −25 kcal/mol. For Arabidopsis target prediction, we also applied an additional restriction on the length of loop and bulge within 5 and 9 nt, respectively.

Plant target validation

To test the reliability of our targets, we designed a three-level validation method. First, we checked whether this validated target existed in our input mRNA dataset; second, we checked the primarily predicted targets to ensure the effectiveness of our predicting method; third, we checked whether it was excluded after the screening process to evaluate the performance of our screening parameters. After the three-level test, we ranked the target by its p-value first, then the MFE, and set a threshold to include most of the validated targets.

Node weight assignment

According to the connectivity among all the N nodes in the network, we used the PageRank [33] algorithm to evaluate each node by constructing an N*N matrix A. As a famous algorithm used by Google, PageRank has proved to be a good measurement of the importance of website pages. If there is a connection between two nodes, we set a value of one to the corresponding position of matrix with all the rest set at zero. Through this process, we recorded all edges in A. We also used a 1*N-dimensional matrix B0 to store each node’s original weight, which is designed equally as one. Then, we multiplied the matrix A and B0 to obtain B iteratively. After about ten iterations, we obtained a converged matrix B as the final weight of each node.

Core module selection

According to the relationship between any two nodes, we took the entire network as an equivalent of an undirected, connected graph G. The core module selection process is based on the bridge gene v, to extract sub-graph G’ from G. The bridge genes rank as nodes with the highest connectivity; thus, we derived the modules by simply deleting these bridges from G, so the G graph was changed into 11 separate highly connected components.

Functional analysis on network and modules

Two Cytoscape apps, Mosaic [21] and NOA [22], were used to analyze the functional similarity among the different human target sub-networks. The GO biological process terms were assigned to each gene in the module using Mosaic, and then all sub-networks were analyzed together under the “Batch mode” of NOA with the complete network as the background. In order to control the type I error rate of multiple hypothesis testing, the Benjanmini & Hochberg method was employed to adjust P-values, so that GO terms were considered as statistically significant in overrepresented functions with adjusted-P <0.1. The functional heatmap (Fig. 2) was generated by NOA.

Since NOA app does not have the annotation for Arabidopsis, in order to compare the functional similarities of modules between Arabidopsis and human, we performed the functional enrichment analysis on each detected modules/sub-networks for both Arabidopsis (Additional file 3) and human (Additional file 4) with DAVID [23]. The GO biological process terms were considered to be statistically significant with DAVID’s default threshold p-value <0.1. Then a web-based tool CateGOrizer [34] was used for simplifying enriched functions and grouping them into more generic GO categories for (Additional file 5). The functional similarity between Arabidopsis and human was measured by calculating the overlaps of two generic GO categories obtained from the CateGOrizer.

Abbreviations

AXIN1, Axis inhibition protein 1; Bc-sRNA, Botrytis cinerea small RNA; CDS, coding DNA sequence; GI, gastrointestinal; GO, gene ontology; HKG, house keeping genes; LDLRAP1, low-density lipoprotein receptor adapter protein 1; LPSs, lipopolysaccharides; MFE, minimum free energy; miRNAs, microRNAs; RNAi, RNA interference; SPL, SQUAMOSA-promoter binding protein-like; sRNAs, small RNAs; TAIR, the Arabidopsis Information Resource

Declarations

Acknowledgements

This work was supported by Natural Science Foundation of Jilin Province (20150101056JC and 20140101194JC), China Postdoctoral Science Foundation (2015M570273), National Natural Science Foundation of China (61471181), and the Postdoctoral Research Station of College of Computer Science and Technology, Jilin University.

Availability of data and material

The datasets supporting the results of this article are included within the article and its additional files.

Authors’ contributions

HZ, YPL, CZ and DX conceived the initial study and prepared relevant data and their pre-processing. HZ, YPL and YNL designed the prediction model. YPL, HML, YMZ, WJ and HYW implemented the prediction algorithm. HZ, YPL, CZ and DX performed the data analyses. All authors wrote and reviewed the manuscript. All authors read and approved the final manuscript.

Authors’ information

HZ, YNL and DX are Professors at Symbol Computation and Knowledge Engineering of Ministry of Education, College of Computer Science and Technology, Jilin University of China and Department of Computer Science and Christopher S. Bond Life Sciences Center, University of Missouri, USA. YPL, HML, HYW, WJ and YMZ are masters at Symbol Computation and Knowledge Engineering of Ministry of Education, College of Computer Science and Technology, Jilin University of China. CZ is a researcher at Institute of Computational Biomedicine, Weill Cornell Medical College, New York, USA.

Competing interests

The authors declare that they have no competing interests.

Consent for publication

Not applicable.

Ethics approval and consent to participate

Not applicable.

Open AccessThis article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The Creative Commons Public Domain Dedication waiver (http://creativecommons.org/publicdomain/zero/1.0/) applies to the data made available in this article, unless otherwise stated.

Authors’ Affiliations

(1)
Symbol Computation and Knowledge Engineering of Ministry of Education, College of Computer Science and Technology, Jilin University
(2)
Department of Computer Science and Christopher S. Bond Life Sciences Center, University of Missouri
(3)
Institute of Computational Biomedicine, Weill Cornell Medical College
