DGCA: A comprehensive R package for Differential Gene Correlation Analysis
BMC Systems Biology volume 10, Article number: 106 (2016)
Abstract
Background
Dissecting the regulatory relationships between genes is a critical step towards building accurate predictive models of biological systems. A powerful approach towards this end is to systematically study the differences in correlation between gene pairs in more than one distinct condition.
Results
In this study we develop an R package, DGCA (for Differential Gene Correlation Analysis), which offers a suite of tools for computing and analyzing differential correlations between gene pairs across multiple conditions. To minimize parametric assumptions, DGCA computes empirical pvalues via permutation testing. To understand differential correlations at a systems level, DGCA performs higherorder analyses such as measuring the average difference in correlation and multiscale clustering analysis of differential correlation networks. Through a simulation study, we show that the straightforward zscore based method that DGCA employs significantly outperforms the existing alternative methods for calculating differential correlation. Application of DGCA to the TCGA RNAseq data in breast cancer not only identifies key changes in the regulatory relationships between TP53 and PTEN and their target genes in the presence of inactivating mutations, but also reveals an immunerelated differential correlation module that is specific to triple negative breast cancer (TNBC).
Conclusions
DGCA is an R package for systematically assessing the difference in genegene regulatory relationships under different conditions. This userfriendly, effective, and comprehensive software tool will greatly facilitate the application of differential correlation analysis in many biological studies and thus will help identification of novel signaling pathways, biomarkers, and targets in complex biological systems and diseases.
Background
Over the past two decades, a wealth of highdimensional biological data types have emerged including microarray, RNAseq, proteomics, epigenomics, metabolomics, lipidomics, and many others [1, 2]. A common use of these data is to gather and compare samples from multiple conditions, e.g., disease and nondiseased, in an attempt to identify molecular identifiers (e.g., probes, transcripts, genomic features, proteins, metabolites, lipids; henceforth, “genes”) that distinguish between different conditions. Currently, the most common method of comparing samples from different conditions is differential expression analysis [3, 4]. Recently, new methods for detecting differential coexpression or differential correlation analysis have emerged to gain insights into the difference in genegene relationships between various conditions of interest. Distinct from differential expression, differential correlation operates on the level of gene pairs rather than individual genes (Fig. 1). Differential coexpression analysis can start with coexpressed gene modules or clusters based on the similarity of their gene expression in each condition using WGCNA [5] and MEGENA [6] and then computes module overlap statistics between conditions [7] or the average modular differential connectivity [8, 9]. Alternative approaches including DICER [10], DINGO [11], CoXpress [12], SDC [13], DiffCoEx [14], GSCA [15], and GSNCA [16] were developed to identify differential coexpression relationships between conditions and gene modules in each condition simultaneously.
While differential coexpression analysis has proven useful in identifying significantly different modular connectivity patterns, differential correlation analysis of individual gene pairs is far more granular. As an example of such a differential correlation, RNA levels of the prostate cancer biomarker gene AMACR have been found to have positive correlation with the tumor suppressor gene PTEN in adjacent normal tissue samples, but not in prostate cancer tissue samples [17]. Multiple approaches for identifying differential correlation between individual gene pairs have been developed, including DiffCorr [18], EBcoexpress [19], and Discordant [20]. DiffCorr calculates correlations in each condition and uses the difference in ztransformed correlation coefficients to calculate pvalues. EBcoexpress uses an empirical Bayesian approach and a nested expectationmaximization algorithm to estimate the posterior probability of differential correlation between gene pairs. Discordant fits a mixture distribution of correlation classes in each condition and uses an expectationmaximization algorithm to estimate the posterior probability of each differential correlation category [21].
In this manuscript, we introduce DGCA, an R package to identify differential correlations between gene pairs in multiple conditions. DGCA shares some features with existing approaches for identifying differential correlation. Like DiffCorr, DGCA transforms correlation coefficients to zscores and uses differences in zscores to calculate pvalues of differential correlation between genes. Like Discordant, DGCA classifies differentially correlated gene pairs into the nine possible categories. However, DGCA differs from the existing differential correlation approaches in four key ways. First, DGCA calculates false discovery rate of differential correlations through nonparametric sample permutation. Second, DGCA can calculate the average difference in correlation between one gene and a gene set across two conditions. Third, DCGA integrates with MEGENA to perform multiscale clustering analysis of differential correlation networks to identify gene modules (clusters) and hub genes. Finally, DGCA provides comprehensive downstream functional analysis of differential correlation structures including visualization, gene ontology (GO) enrichment, and network tools.
To assess the performance of DGCA and the existing methods EBcoexpress and Discordant in identifying differentially correlated gene pairs, we designed and implemented a simulation study. Next, we applied DGCA to the breast cancer data from The Cancer Genome Atlas (TCGA) with and without p53 and PTEN coding mutations. We identified five genes with a significant change of correlation with TP53 in the p53mutated samples, and two genes with a significant change of correlation with PTEN in the PTENmutated samples. We showed that each gene’s differential correlation with TP53/PTEN between p53/PTEN wildtype and inactivated samples is uncorrelated with its differential expression in this data set. By evaluating differential correlations between the overall correlation matrices, DGCA allowed us to harness additional insights about the regulatory patterns among TP53’s targets following p53 mutation. We further performed DGCA on the estrogen receptorpositive (ER+) and triple negative (TN) breast cancer subtypes in the TCGA breast cancer data and identified key gene ontology categories that differ in regulation between breast cancer subtypes. By integrating DGCA with the multiscale clustering approach MEGENA, we identified modules containing key hub genes that coordinate differential correlations between the two subtypes. We demonstrated that DGCA/MEGENA can better detect modules than the established approaches DICER and DiffCoEx in another simulation study. Furthermore, we showed that a majority of the modules detected by DGCA/MEGENA in the TCGA breast cancer data were not detected by DiffCoEx or DICER, while a majority of the modules detected by either DiffCoEx or DICER were uncovered by DGCA/MEGENA, revealing the novelty of our proposed module detection approach.
Methods
Differential correlation analysis flow
DGCA has three main inputs including a matrix of gene expression values, a design matrix specifying conditions associated with samples, and a specification of the conditions for comparison (Fig. 2). Prior to the actual analysis, users have the option to filter the input expression matrix to remove genes with low expression central tendency and/or dispersion, since these genes are more likely to have spurious correlations. Note that central tendency refers to measures of centrality in a distribution, including the arithmetic mean or median, while dispersion refers to measures of spread in a distribution, including the standard deviation and the dispersion index (the variance divided by the mean). To stabilize the variance of sample correlation coefficients in each condition, the Fisher ztransformation is employed [22, 23]:
where r is the sample correlation coefficient, log _{ e } is the natural logarithm function, and atanh is the arctangent hyperbolic function. In this context, the Fisher ztransformation function serves as a normalizing transformation. The variance of the resulting zscores depends on whether the sample correlation coefficient is the Pearson productmoment correlation coefficient (r_{p}) or the Spearman’s rank correlation coefficient (r_{s}) [24]. When the underlying distribution is assumed to be bivariate normally distributed, the variance can be calculated by
where n is the sample size of the calculated correlation. Notably, the variance of the correlation coefficients in a particular condition could differ due to a different number of samples or due to missing data in one or both of the genes’ expression measurements. These equations for the variance have been found to be valid over a wide range of sample sizes that are common in current biological data sets [24]. Due to the denominator, the equations require that there are at least 4 samples in each condition considered. The difference in zscores (dz) between two conditions can then be calculated by,
where \( {s}_{z_x}^2 \) refers to the variance of the zscore in condition x. Using the difference in zscores dz, a twosided pvalue can be calculated using the standard normal distribution. Gene pairs can then be ranked on the basis of their relative strength of differential correlation.
Multiple hypothesis testing correction
When testing for differential correlation between gene pairs in genomewide experiments, the number of hypothesis tests grows quadratically in the number of genes. For example, differential correlation analysis of 20,000 genes would require 199,990,000 hypothesis tests. Therefore, DGCA offers several options for adjusting pvalues for multiple hypothesis tests, including the conservative BenjaminiHochberg pvalue adjustment method [25, 26] and the local false discovery rate method [27]. However, even when using these options, it can be difficult to make intuitive sense of the pvalues returned because the pvalues are originally derived from the difference of zscores method, which depends on specifying the correct form for the variance of the sample correlation coefficients, and in turn on the bivariate distribution of the gene expression values. Therefore, DGCA also offers to generate permutation samples by randomly shuffling the sample labels across the input conditions and then recomputing the differential correlation calls. The zscores from the original and permuted data sets are used to calculate empirical pvalues, using a reference pool distribution approach adapted from the R package qvalue [28]. These empirical pvalues are used to estimate the proportion of null hypotheses in empirical pvalues by extrapolating a linear trend from a cubic spline fitted over candidate ranges of the tuning parameter lambda [29]. Then, qvalues are calculated based on the empirical pvalues and the estimated proportion of null hypotheses.
Classifying differentially correlated gene pairs
At the most basic level, gene pairs can be classified as having gain of correlation (GOC) or loss of correlation (LOC) between one condition compared to another. For example, a gene pair with ρ = 0.8 in a condition A and ρ = 0.2 in a condition B is defined as having a gain of correlation in the condition A and a loss of correlation in the condition B. To go beyond this binary classification, we also determine if two genes are significantly correlated in each condition or not. By default and throughout this manuscript, the α threshold for statistical significance of the hypothesis test that the correlation in each condition is significantly different from zero is defined as p < 0.05, although users can set different thresholds. This pvalue is calculated based on the approximation that the correlation coefficient follows a tdistribution with n  2 degrees of freedom, where n is the sample size of the calculated correlation [30]. The pvalues associated with the hypothesis test of nonzero correlation in each separate condition are not adjusted for multiple tests by default. Based upon a threshold for correlation significance and the sign of correlation in each condition (i.e., positive or negative), genegene correlations in each condition can be categorized into 3 classes, i.e. significant positive correlation, no significant correlation, and significant negative correlation. Therefore, there are 9 classes for differential correlations between two conditions (Fig. 3). DGCA also allows users to perform downstream analyses of differential correlation classes, including heatmap visualization and gene ontology (GO) enrichment analysis of the genes in each differential correlation class.
Calculating the average differential correlation between gene pairs
It is sometimes useful to measure the difference in average correlations of a gene and a set of genes between two conditions. DGCA quantifies the median difference in ztransformed correlation coefficients of a gene and a gene set (henceforth, median difference in zscore) between two conditions. In this context, a median difference in zscore above 0 indicates a tendency towards a gain of correlation between the given gene and the gene set in the first condition with respect to the second condition, while a median difference in zscore below 0 indicates a tendency towards a loss of correlation. To measure the significance of the median change in correlation, DGCA leverages the permutation samples to calculate empirical pvalues, as illustrated by the following equation,
where, med refers to the function for the median of a set, i is the gene for which the median difference in zscore is being compared between conditions, dz _{ ij } is the difference in ztransformed correlation coefficients between genes i and j in the two conditions, p refers to a permutation, and n refers to the total number of permutations. As a generalization, DGCA also offers to calculate the median difference in zscore between all gene pairs in two conditions. In this case, in order to calculate a twosided pvalue, the median is taken over all of the gene pairs using the following equation,
This approach is similar to the modular differential correlation calculation that was previously described and used [8, 9].
Simulated biological data and comparison with EBcoexpress and Discordant
We designed a simulation study to assess the performance of DGCA and the existing methods EBcoexpress (version 1.12.0) [19] and Discordant (version 0.99.0) [20] at detecting differentially correlated gene pairs in the presence of noise. We did not compare DGCA to DiffCorr [18] in the simulation study, since both of these packages use the Fisher ztransformation and zscore calculation as its underlying algorithm, although DGCA offers a number of additional options, including permutation testing to quantify the statistical significance of genegene differential correlation. Among the 600 genes in our simulation study, 300 have high average expression and high dispersion (i.e., are occasionally “activated” in a biological sense) and 100 have high average expression and onefold lower dispersion (i.e., are “housekeeping” genes that are constitutively expressed), and 200 have substantially lower average expression and high dispersion (i.e., genes that in a particular cell or tissue type are “nonexpressed”). We built two covariance matrices to describe the dependence structure of the 179,700 gene pairs in each condition. We specified these covariance matrices so that 19 gene pairs, for which both of the genes were in the “activated” gene set, were segregated into each of the 8 differential correlation classes. Note that by default all of the gene pairs in the covariance matrices are set as 0 and the “0/0” differential correlation class means that two correlations under two conditions are not statistically different and thus it are not specified. To maintain a positivedefinite covariance matrix in the case of negative correlations, we only set the super and subdiagonals of the offdiagonals of the covariance matrix to nonzero values. The super and subdiagonals were set to 0.5 or 0.5 times the variance of a particular gene pair, corresponding to positive or negative correlation in one condition, respectively. Because two differential correlation classes, ρ = +/+ and ρ = /, do not specify a difference between correlation between conditions, the number of actually differentially correlated gene pairs is reduced from 152 to 114. We then simulated the mean values for each gene using a negative binomial distribution with a dispersion parameter of 0.5, and set the mean values of less than one to one. The negative binomial distribution and its parameters were designed to approximately match the bimodality of expression means observed in RNA expression experiments [31, 32]. With the mean values for each gene as well as the covariance matrix, we simulated multivariate normally distributed gene expression matrices for various numbers of samples using the R package MASS [33]. We then employed receiver operating characteristic (ROC) curves [34] to measure the performance of DGCA and EBcoexpress on detecting the 114 truly differentially correlated gene pairs out of the total 179,700 gene pairs, for six different numbers of simulated samples in each condition, i.e., n = 10, 30, 50, 70, 90, and 100. We ran the simulation 5 times in order to estimate the standard error of the area under curve (AUC) statistics in the ROC curves. To estimate the statistical significance of the difference in performance between these methods, we used Student’s ttest to compare their AUCs at various sample sizes. We adjusted the pvalue threshold required to call a comparison as significantly different for the number of simulated cases (n = 6; p < 0.05/6 = 0.00833).
Of the six types of differential correlation in this simulation study, 38 truly differentially correlated gene pairs had a strong difference (Δρ = 1) in correlation coefficient between conditions, while 76 had a medium difference (Δρ = 0.5) in correlation coefficient between conditions. We measured the accuracy of each of the methods to distinguish truly differentially correlated gene pairs for both the strong and medium difference classes, using the same comparison approach as in the full simulation experiment. For the simulations with n = 30 simulated samples, we also plotted representative ROC curves for each class, to visualize the ability of each of the differential correlation R packages to detect truly differentially correlated gene pairs in each of the 6 differential correlation classes. R code for this simulation study is available online (see “Availability and requirements”).
Data processing for applications using breast cancer RNA expression data
We applied DGCA to the breast cancer RNAseq data from The Cancer Genome Atlas (TCGA) [35] under two scenarios: a) the samples with and without a p53/PTEN mutation and b) the estrogen receptorpositive (ER+) samples and the triple negative (TN) samples. The level 3 RNAseqV2 data of breast cancer in the TCGA data portal first went through a log(x + 1) transform, then was quantilenormalized, and finally was corrected for age, batch, race, and gender using a linear regression approach. For the differential correlation analysis of p53/PTEN, this RNA expression data was filtered to contain only genes previously described as within p53/PTEN pathways (described below), but underwent no expression filtering. For the differential correlation analysis between ER+ and triple negative breast cancer, RNA expression data was filtered to remove genes in the bottom 25^{th} percentile of median expression and/or dispersion index of expression (described below), but underwent no filtering for specific gene sets.
Differential correlation of p53/PTEN targets in normal and p53/PTENmutated breast cancer tumor samples
Somatic mutation data was obtained from TCGAcurated mutations (Washington University School of Medicine curated mutation calling). We identified a set of RNA expression samples with and without a) a nonsilent p53 DNA mutation and b) a nonsilent PTEN DNA mutation. For the p53 analysis, we next filtered these RNA expression matrices to contain only genes that contain a p53 response element [36], are in the Molecular Signatures Database (MSigDB) p53 hallmark gene set [37], and/or are a downstream target of p53 in the Pathway Interaction Database [38]. For the PTEN analysis, we filtered the RNA expression matrices to only contain genes that are in the Biocarta PTEN pathway [39], the SigmaAldrich PTEN pathway [40], and/or have been identified in physical interactions with PTEN by affinity capture, as curated via Biogrid [41]. We then calculated the differential Spearman correlations on this filtered RNA expression matrices between the p53/PTEN mutated and nonp53/nonPTEN mutated breast cancer samples. For p53 only, we used the signType argument in DGCA to restrict the difference in zscore calculation between conditions to positive correlations, since p53 is a transcriptional activator and we reasoned that negative correlations with TP53 are less likely to be biologically meaningful. Notably, the signType argument in DGCA, which refers to the differential correlation sign type (i.e., direction), can also be used to restrict the difference in zscore calculation between conditions to negative correlations if users are interested in only considering negative correlations as nonzero when assessing the difference in correlation between conditions. To assess the significance of the difference in genegene correlations, we generated empirical pvalues via 10,000 permutations. For p53, we further visualized the global difference in correlations among p53associated genes using the DGCA heatmap visualization, which builds on the gplots R package (version 2.17). We then visualized the genegene correlation matrix in each condition, and calculated both the median change in correlation for each gene and the median change in correlation for all gene pairs between the conditions, using 1000 permutations to quantify the significance.
Differential correlations in RNA expression data from estrogen receptorpositive compared to triplenegative breast cancer samples
For the data from the ER+ and TN breast cancer samples, we removed the genes in the bottom 25^{th} percentile of median expression and/or dispersion index of expression. Note that the dispersion index is calculated as the ratio of the variance divided by the mean. We measured the differences in Pearson correlation between all pairs, using 5 permutations to quantify the significance of the difference in correlation, and identified genes with qvalue < 0.05 for downstream analysis. Upon identifying the significantly differentially correlation gene pairs, we first collapsed these gene pairs to identify the genes uniquely present in gene pairs with a gain of correlation in one condition compared to the other, and used the DGCA wrapper function to perform gene ontology (GO) enrichment analysis based on the GOstats R package (version 2.34) [42] and org.Hs.eg.db GO annotation R package (version 3.1.2). For the GO enrichment analysis, we used genes identified in gene pairs with q < 0.01, since this greater specificity yielded a larger set of genes uniquely present in only one of the two differential correlation conditions. To compare the GO enrichment between the two conditions, we first filtered for those GO terms with between 50 and 600 gene symbols with a nominal significant pvalue (<0.05) in at least one of the conditions. We next took the log of the ORs, since log ORs converge more rapidly to a normal distribution. We then calculated the standard error for the log ORs in each condition, using the following equations [43],
where, n_{11} is the number of genes in the intersection between a gene signature and a GO term, n_{12} is the number of member genes in the GO term but not in the gene signature, n_{21} is the number of genes in the signature but not in the GO term, and n_{22} is the number of genes in the universe but not in either group. In order to quantify the significance of the difference in the log ORs in each group, we used the following equation,
where, OR_{1} and OR_{2} refer to the log odds ratio of the enrichment in conditions 1 and 2, respectively, while z refers to the zscore of the difference in log ORs. We then calculated the associated pvalue from the zscore using the cumulative distribution function for the standard normal distribution. For each GO term type (i.e., Biological Process (BP), Cellular Component (CC), and Molecular Function (MF)), we adjusted these pvalues using the BenjaminiHochberg false discovery rate (FDR) method. We chose the top 5 terms in each group with FDR < 0.05 for visualization.
Next, we used the MEGENA R package (version 1.3) [6] to first build a planar filtered network (PFN) from significantly differentially correlated gene pairs (q < 0.05) and then identify multiscale gene modules in the PFN. We used the absolute value of the zscore for the difference in correlation between conditions as the network weights, and after calculating the perfuse forced network, we also normalized these weights, to follow the convention that network weights fall between 0 and 1. Next, we identified modules and hubs, using the default MEGENA parameters values, including module significance threshold of p < 0.05, a hub detection significance threshold of p < 0.05, 100 network permutations, and a module size of between 50 and 800. We then calculated the odds ratios of the enrichment of correlation class edges in each module using the hypergeometric test, and adjusted the enrichment pvalues for each correlation class using the BenjamaniHochberg method. Further, we performed the enrichment of GO terms in each modules using the GOstats R package [42] and org.Hs.eg.db GO annotation R package and adjusted the resulting pvalues for all GO terms in each module with the BenjaminiHochberg method. We visualized two of the networks derived from differential correlation modules using Cytoscape and created interactive versions of them via CyNetShare.
Comparison to alternative module detection approaches
We sought to compare DGCA/MEGENA to two approaches to differential correlation module detection, DiffCoEx [44] and DICER [10]. For DiffCoEx, we downloaded the R script that the authors released in their Supplementary materials and used the same method and set of R commands they used therein. For DICER, we downloaded the Java executable file from the author’s website (http://acgt.cs.tau.ac.il/dicer/) on 8/21/2016 and ran it using Java v. 1.8.0_66. We designed a simulation study to assess the performance of different approaches for detecting differentially correlated modules. This simulation study uses many of the same parameters as our previous simulation study of differentially correlated gene pairs but has several unique features. First, instead of individual gene pairs that vary in correlation between conditions, we designated two modules of 30 genes each, a fraction of the pairs of which were positively correlated in one of the conditions but had no correlation in the other. In the simulation, we changed the fraction of positively correlated gene pairs in a module, defined as the network connectivity κ, from κ = 0.5 to 1, in increments of 0.1. Further, to ensure positivedefinite covariance matrices, we set the numerical tolerance to 0.4 in simulating each of the multivariate normally distributed gene expression matrices. Because this numerical tolerance moderated the strength of the correlation difference between conditions, we increased the strength of correlated gene pairs to 0.9 in the positively correlated condition. Notably, we used the default 10 permutations and qvalue threshold of 0.05 for DGCA in the simulation study to identify differentially correlated gene pairs as input to MEGENA for module detection. To be consistent with DICER, the minimum module size was set to 15 for both MEGENA and DiffCoEx. For each of the 10 simulation runs, we computed the highest sensitivity (i.e., the size of the detected module intersection with the true module) for all modules with less than 50 members for each module detection method. In each simulation run, we also computed the highest Jaccard index (i.e., the size of the intersection of the detected and modules divided by the union) for all modules for each module detection method. In the case that no modules were detected by a method, a pseudomodule comprised of all the genes in the simulation study was assigned, leading to a Jaccard index of 0.05 (30/600). We then compared the sensitivity statistics and Jaccard indices of all simulation runs between the methods at each network connectivity fraction and number of samples using a ttest.
We next compared the module detection methods in terms of their performance on the same set of filtered genes for ER+ and TN breast cancer RNA expression data as used by the DGCA/MEGENA pipeline. We first assess the relevance of the sets of modules identified by the three methods through the enrichment test for five gene signatures characterizing these breast cancer subtypes under study. The modules from each method were filtered by size to retain modules with greater than 25 and less than 1000 members. The five gene sets used were a set of genes associated with ER+ breast cancer in multiple data sets [45], a set of genes associated with TNBC in multiple data sets [46], a set of genes associated with ER signaling curated from several data sets [37, 38, 47–52], KEGG Cell Cycle genes, and KEGG DNA Mismatch Repair genes [47] (Additional file 1). The BenjaminiHochberg adjustment method was used to correct the enrichment pvalues for multiple testing, and we used an FDR threshold of 0.3 for all the enrichments of the gene sets. We then tested how the modules detected by one method are conserved in each other method based on a significance threshold (p < 0.05) of the BenjaminiHochberg adjusted Fisher’s Exact Test (FET) enrichment pvalue. A module is defined as unique to a method if it does not significantly overlap with any module identified by any other method. This procedure allowed us to determine the proportion of modules specific to each of the three methods or in any pairwise comparison of modules.
Results
Simulation study to measure the accuracy of detecting differential correlation
DGCA is an R package designed to detect differences in the correlations of gene pairs between distinct biological conditions. We first developed a simulation study to confirm that DGCA can accurately detect differential correlation relationships between gene pairs. Specifically, we designed an in silico experiment with 600 genes and 114 differentially correlated gene pairs out of 179,700 total gene pairs. Thirty eight of the truly differentially correlated gene pairs had a strong difference (1) in correlation coefficient between conditions, while 76 had a medium difference (0.5) in correlation coefficient between conditions. The accuracy of DGCA increased as the number of simulated gene expression samples in each condition increased (Fig. 4ad). DGCA also demonstrated significantly higher accuracy under these simulation conditions than Discordant with and without use of the Fisher ztransformation for n = 30, 50, 70, 90, and 100 samples (twosided Student’s ttest, pvalue < 0.0083), although the two packages did not significantly differ in accuracy at n = 10 samples (Fig. 4e). DGCA demonstrated significantly higher accuracy in the simulation study than EBcoexpress at all of the sample sizes tested (Fig. 4e). Furthermore, DGCA was substantially faster than the other two methods (Table 1). At n = 30 samples, all three methods more accurately detected gene pairs with strong difference in correlation than gene pairs with medium difference in correlation, but there were no major differences within methods between correlation classes within the strong or medium groups (Fig. 5ac). All the methods have similar power to detect gene pairs with strong differences in correlation at any of the sample sizes tested (Fig. 5d). For medium strength gene pairs, DGCA does not significantly differ from Discordant at n = 10 and 30 in terms of accuracy, but outperforms Discordant at n = 50, 70, 90, and 100, while DGCA outperforms EBcoexpress at all sample sizes tested (Fig. 5e). Therefore, DGCA outperforms the two established approaches, EBcoexpress and Discordant, in our simulation study.
Differential correlation of p53 targets in normal and p53mutated breast cancer tumor samples
We downloaded RNAseq data of breast cancer samples with and without nonsilent p53 DNA mutations from TCGA (n = 590 non p53mutated samples, n = 254 nonmutated samples), and corrected the data for known covariates. We chose this data set because the ability of p53 to affect the expression of its downstream targets is known to be altered following p53 mutation [53, 54]. We filtered the RNAseq data to select 295 genes in the data set as the p53 signature that have previously been associated with p53 [36–38]. Since p53 is known to be a transcriptional activator, we restricted our analysis to positive correlations with TP53 in the two groups (see Methods). We then quantified the significance of these differential correlation relationships using permutation testing. We identified five genes that have a significant (q < 0.05; corresponding to nominal pvalue 0.0098) change in correlation with TP53 in the group of samples with p53 mutations (Fig. 6; Table 2; Additional file 2). Two of these are due to a loss of correlation following p53 mutation (GNB2L1, RPS12), while three are due to a gain of correlation (TSC22D1, CDKN1A, DGKA). The gene with the strongest loss of correlation with TP53 is GNB2L1 (a.k.a. RACK1), a ribosomal gene whose expression is strongly predictive of breast cancer outcome [55]. CDKN1A, a wellestablished transcriptional target of p53 that encodes the protein p21, demonstrated an increased correlation with TP53 in the group of samples with p53 mutations, possibly reflecting compensatory p53independent transcriptional activation of CDKN1A [56].
We further explored the relationship between differential correlation and differential expression. We performed differential expression analysis on these genes using the R package limma (Additional file 3). We then calculated the Spearman correlation between the magnitude of differential expression (measured by the tstatistic) and the differences in positive correlation values with TP53 for all of the genes. Although these two measures trended in the same direction, they had no significant correlation between them (ρ = 0.08, pvalue = 0.15; Fig. 7a). Because this lack of correspondence may have been influenced by our restriction to differences in positive correlations, we also measured the correlation between differential expression and differential correlation with TP53 across all the correlations, and found no correlation in that case either (ρ = 0.06, pvalue = 0.30; Fig. 7b). The lack of correlation corroborates our theoretical claim that differential expression and differential correlation are complementary approaches to identifying differences in gene expression between conditions.
To gain more insights into the overall change in correlation structure in RNA expression matrices between p53mutated and p53nonmutated breast cancer samples, we used DGCA to visualize the all gene pair correlations in both conditions (Fig. 8). Genes in this heatmap are ordered by their median zscore correlation difference with all of the other genes in the filtered set between the two conditions, without the restriction to positive correlations. When we quantified the difference in correlation between all gene pairs using permutation testing, we identified a global loss of correlation between p53mutated and p53wildtype samples (median difference in zscore (dz) = 0.06, p = 0.007), suggesting that p53 mutations decrease the correlations among the p53 signature genes. Because visual inspection of the heatmap indicated that a subset of genes tended towards gain in correlation while others tended towards a loss in correlation, we used permutation testing to measure whether each gene’s median change in correlation was more extreme than expected, and adjusted the resulting empirical pvalues for multiple hypothesis testing. Using this approach, we identified genes with significant changes in median correlation in p53mutated samples (Table 3; Additional file 4). Notably, the transcription factor FOXA1 has a gain in correlation with the other genes in the p53 signature in the p53mutated breast cancer samples (median dz = 0.48, p < 1e4). This suggests that FOXA1 may play a role in transcriptional compensation following p53 mutation, which is consistent with the finding that FOXA1 binding sites are enriched in p53 binding sites [57]. On the other hand, the transcription factor ATF3 has a loss of correlation with the other genes in the set (median dz = 0.67, p < 1e4), which is consistent with its highly synergistic role with p53 in mediating transcription [58] and ability to directly bind to and suppress mutant p53 [59]. LDHB also has a strong loss of correlation in p53mutated samples (median dz = 0.56, p < 1e4). Since LDHB (lactate dehydrogenase B) is a marker of highly glycolytic cancers [60], its broad dysregulation following p53 mutation may reflect the disrupted role of p53 in regulating glycolytic activity [61]. These examples highlight the ability of DGCA to parse out the individual components of the differential correlation structure between conditions.
Differential correlation of PTEN targets in normal and PTENmutated breast cancer tumor samples

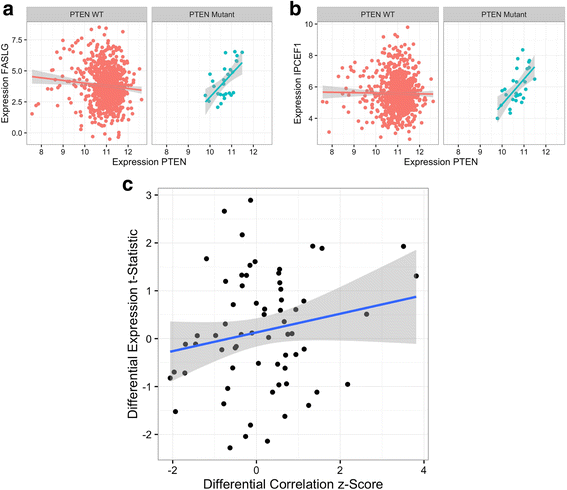

We used a similar approach to measure the differential correlation of genes known to be associated with PTEN following PTEN DNA mutation, using the same processed breast cancer RNA expression data as we used for p53. PTEN is typically considered a tumor suppressor, and its role in breast cancer pathogenesis has been suggested to be related to loss of PTEN protein activity [62]. We filtered the RNAseq data to select 66 genes in the data set as the PTEN signature that have previously been associated with PTEN [39–41]. Because PTEN was not considered as a transcriptional activator, we did not restrict the correlations to positive values prior to calculating differential correlations as we did for p53 (see Methods). We identified two genes with a significant gain in correlation with PTEN in breast cancer samples with PTEN mutations (n = 27) compared to samples without PTEN mutations (n = 816), FASLG and IPCEF1 (Table 4, Fig. 9ab, Additional file 5). FASLG encodes Fas ligand, which induces apoptosis upon binding to Fas, and polymorphisms in which contribute to breast cancer risk [63]. Fas signaling typically activates PTEN as a part of its promotion of apoptosis [64]. The expression of Fas and PTEN have previously been found to be negatively correlated in prostate cancer [65], consistent with the negative correlation we identify between PTEN and FASLG in the PTEN wildtype breast cancer samples, suggestive of negative regulation at baseline. In the absence of PTEN protein activity, activation of Fas may lead to compensatory increased transcription of PTEN in a failed attempt of negative regulation, perhaps mediated in part by microRNA21 [66], thus inducing a strong positive correlation between the expression of these two genes. IPCEF1 encodes a scaffold protein involved in signal transduction downstream of growth factors and Ras [67]. IPCEF1 is less wellstudied, so its differential correlation with PTEN in the presence of PTEN mutations may provide a way to study its function. We next examined the relationship between differential expression and differential correlation with respect to PTEN. As in the case of p53, there is no correlation between the genes differentially expressed between the groups with and without PTEN mutations and the genes differentially correlated with PTEN (ρ = 0.13, p = 0.29; Fig. 9c; Additional file 6).
Global differential correlations between estrogen receptorpositive and triplenegative breast cancer samples
We next sought to use DGCA to make a global comparison of gene expression correlation patterns between estrogen receptorpositive (ER+) and triplenegative (TN) breast cancers in TCGA (n = 625 ER+ samples, n = 89 TN samples). We filtered out genes in the bottom 25^{th} percentile of median expression and/or dispersion index of expression, which yielded a total of 10,530 genes. We found the difference in Pearson correlations among all of these gene pairs across the two conditions, and identified 520,907 differentially correlated gene pairs at qvalue < 0.05 (corresponding to nominal pvalue < 3.1e4) between the ER+ and TN breast cancer gene expression samples. We first measured gene ontology (GO) of the genes in gene pairs with a gain of correlation in ER+ samples to the GO enrichment of genes found in gene pairs with a gain correlation in TN samples, but found no significant differences in the GO term enrichments between groups, likely due to the small number of unique genes in each category (n = 49 genes found uniquely in gene pairs with a gain of correlation in ER+ samples and n = 45 corresponding genes for TN samples). However, by restricting to the 97,644 gene pairs at q < 0.01 (corresponding to nominal pvalue < 7.3e6) for specificity, we were able to perform GO enrichment on a larger set of genes unique to gene pairs with a gain of correlation in ER+ samples (n = 1201 genes) or a gain correlation in TN samples (n = 1320; Fig. 10). Genes in gene pairs with a gain of correlation in ER+ samples were enriched in the GO term vasculature development (ER+ OR = 1.5, FDR of difference with TN = 1.6e4), which makes sense in light of the finding that ER+ breast cancer samples harbor a relatively high proportion of blood vessels in the tumor environment [68]. Further, genes in ER+ specific gene pairs were enriched in calcium ion binding (OR = 1.5, FDR = 0.008), which is consistent with the ability of calcium to stimulate estrogen receptoralpha expression and mimic estrogen [69, 70]. On the other hand, genes in gene pairs with a gain of correlation in TN samples were enriched in the GO term negative regulation of viral life cycle (TN OR = 4.9, FDR = 0.006), which may be explained by reports that a subset of TN breast cancers are associated with viral infection [71]. Surprisingly, despite the presence of multiple gene sets related to estrogenregulated genes in the GO annotation set employed, including “estrogen receptor activity” and “estrogen receptor binding”, none of these were identified as significantly enriched in differentially correlated gene pairs unique to ER+ or TN samples. This may be because changes in the correlations of ERresponsive genes with other genes occur in both ER+ and TN samples, suggesting that DGCA can pull out novel biology for further investigation.

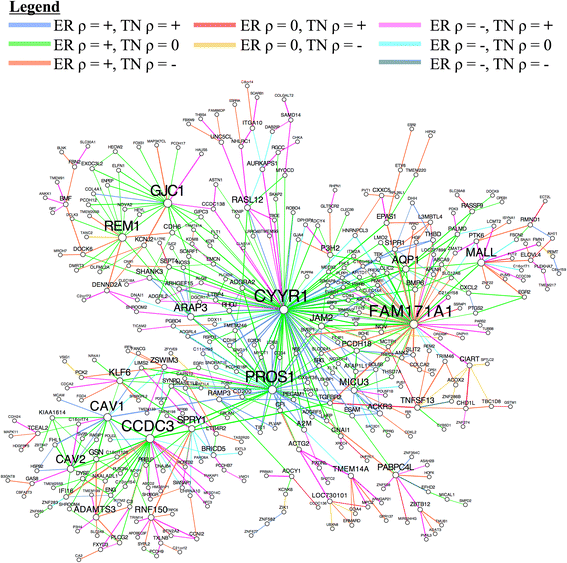

In order to identify coherent subnetworks and hub genes constituted by differential correlations, we integrated DGCA with MEGENA (Multiscale Embedded Gene Coexpression Network Analysis) [6] and used the set of 520,907 gene pairs found at q < 0.05 as inputs to Planar Filtered Network (PFN) construction. MEGENA projects candidate interactions onto a topological sphere and parses the resulting planar filtered network into multiscale modules (subnetworks) defined at multiple resolutions, and has been shown to effectively reconstruct gene regulatory networks [6]. The resulting planar filtered network had 16,737 edges, from which we identified 25 modules using multiscale clustering analysis (Fig. 11). We measured the enrichment of the edges in these modules in each of the differential correlation classes, and further found their most enriched GO terms (Fig. 12). We first focused on the module with the strongest enrichment of edges with positive correlation in the ER+ samples and no correlation in the TN samples (Module 11; OR = 2.5, p = 4.2e7), which is most enriched in the GO term vasculature development (OR = 4.2, p = 1.3e13). We also used MEGENA to identify hub genes (at FDR < 0.05) in this module, which revealed that CYYR1, FAM171A1, PROS1, CCDC3, GJC1, REM1, and CAV1 are its hub genes (Fig. 13). The locus at CYYR1 encodes seven or more CYYR1 alternatively spliced isoforms as well as an antisense gene with high expression variability across tissue types [72]. Our data suggests that CYYR1 drives and/or is associated with a strong reprogramming of transcription in ER+ compared to TN breast cancer samples. We next focused on the module with the strongest enrichment of edges with negative correlation in ER+ samples and positive correlation in TN samples (Module 13, OR = 2.3, p = 2.4e8), which is also significantly enriched in edges with no correlation in ER+ samples and positive correlation in TN samples (OR = 1.7, p = 0.005). This module is most enriched for the GO term immune response (OR = 4.6, p = 7.9e17), consistent with reports of the relatively strong role of the immune system in mediating TNBC [73–75]. The hub genes identified in this network are NAGS, JADE2, DRAM1, PTGER2, and PROB1 (Fig. 14). Notably, the protein product of JADE2 has been found to act as a ubiquitinligase to regulate the activity of the histone demethylase LSD1 in neuronal differentiation [76], suggesting that it may play a role in shifting the immunerelated epigenetic landscape in TNBC samples. Interactive figures for these two differential correlation networks are available online (see “Availability and requirements”).
Evaluation of differential correlation module detection approaches
To evaluate the performance of DGCA/MEGENA in detecting differential correlations, we first compared it with two established methods, DiffCoEx [44] and DICER [10], using a simulation study. In this simulation, we designed two differential correlation modules of 30 genes each, out of a total of 600 genes. In each module, a fraction of gene pairs (ranging from κ = 0.5 to 1) have significant positive correlations in one condition but no significant correlation in the other. For each of the true modules across various numbers of simulated samples (n = 100 to 400), we identified the top sensitivity and Jaccard index statistics of the modules detected by each method and then compared them (Fig. 15). DGCA/MEGENA identified modules with significantly higher sensitivity and Jaccard indices than DiffCoEx and DICER in all the simulation conditions that have κ < 1 (ttests, all unadjusted pvalues < 0.05), with the exception of the Jaccard index comparison with DICER at κ = 0.9, n = 400 samples (p = 0.25). In the extreme condition where all the gene pairs are differentially correlated (κ = 1), DiffCoEx identifies modules with higher Jaccard indices (pvalues < 0.05) but not higher sensitivities than DGCA/MEGENA at all sample sizes, while DICER identifies modules with higher sensitivities and Jaccard indices than both methods at n = 200, 300, and 400 (ttests, all unadjusted pvalues < 0.05). However, even under the extreme and limited condition of κ = 1, the practical performance difference between DGCA/MEGENA and the other two methods is very small. In contrast, DiffCoEx and DICER usually fail to identify the differentially correlated modules under the more general conditions (κ < 0.9). In summary, DGCA/MEGENA demonstrated the best performance in detecting differential correlation modules under the more general simulation conditions.
We next examined whether the differential correlation modules identified by DGCA/MEGENA on the ER+ and TN breast cancer RNA expression differed from those identified by DiffCoEx [44] and DICER [10] (Additional file 7). Although these alternative methods do not automatically specify genegene links or identify hub genes, they do also identify differentially correlated gene modules. We first counted the number of modules identified by each method that were significantly enriched (FDR < 0.3) in five gene sets chosen because of their importance in breast cancer (Fig. 16a; Additional file 1). We found that DGCA/MEGENA identified the most modules significantly enriched in genes associated with ER+ breast cancer and estrogen receptor (ER) signaling, while DGCA/MEGENA and DICER tied in the number of modules significantly enriched in TNBC genes, and DICER identified the most modules significantly enriched in the KEGG terms Cell Cycle and Mismatch Repair. We then identified the modules unique to each method. We found the proportion of modules for each method that were not significantly enriched in any of the modules by one (offdiagonals, by column) or either (diagonals) of the other methods (Fig. 16b). DGCA/MEGENA identified a higher proportion of unique modules compared both pairwise and globally to the existing methods DiffCoEx and DICER.
Discussion
The R package DGCA developed by this study is a powerful new tool for querying the regulatory relationship of gene pairs under different conditions. DGCA is applicable to a wide range of input data types, including microarray data, tissuelevel or singlecell RNAseq data, proteomic data, methylation data, and metabolomic data. In general, DGCA can be used to compare the correlations between features from both continuous and countbased data types. Users input a gene expression matrix with gene identifiers in rows and samples in columns, a design matrix specifying which samples correspond to which conditions, and a vector specifying the conditions to be compared. In our differentially correlated gene pair simulation study, DGCA significantly outperformed EBcoexpress and Discordant in terms of accuracy and speed. When we applied DGCA to the RNAseq data from the TCGA breast cancer samples with and without p53 mutations, we identified p53 pathway genes that had significant changes in correlation with TP53 between the p53mutated samples and those without p53 mutations. We revealed that p53 mutations altered the correlation patterns between the p53pathway genes. We also studied the effect of nonsilent PTEN DNA coding mutations, and showed that these mutations led to differential correlation between PTEN and two genes that it has been found to interact with. In the future, we will examine additional genes such as MYC, KRAS, and ERBB2 in breast cancer and other cancers.
One of the limitations of our differential correlation approach to studying p53 mutations in breast cancer is that there is a wide variety in the functions of p53mutations [53] and our approach averaged over many of them. As the sample size of the available data increases, it would be valuable to perform differential correlation on groups defined by individual p53 mutations or classes of p53 mutations. Given a larger sample size allowing for factorial analyses in differential correlation, it would also be interesting to consider both the effect of heterozygous deletions of the short arm of chromosome 17 that contain the p53 gene, which is often seen in combination with p53 coding mutations [77]. This would allow investigators to study whether TP53 gene dosage affects p53 activity, especially because some but not all p53 coding mutations are able to act in a dominantnegative manner [78]. Another factor we will consider in future studies is MDM2 gene amplification, which can also modulate the activity of p53 [54].
DGCA fits in well with the growing suite of tools available in the R statistical programming ecosystem for analyzing gene expression data, and can be used synergistically with a number of them. For example, as demonstrated empirically in this study, differential correlation is complementary to differential expression for discovering differences in gene expression between conditions. Differential correlation as a complement to differential expression is particularly apt in the case that the expression of a regulatory gene (e.g., a transcription factor) has its activity altered in one of the conditions without fully abrogating its expression, as is often the case for DNA mutations in tumor cells. However, differential correlation can be applied more broadly as well; for example, in discovering differences in the pathways that genes participate in between tissues and cell types. Differential correlation is also complementary to module detection approaches, such as MEGENA, as was shown in this manuscript through a comparison of estrogen receptorpositive breast cancer to triplenegative breast cancer. By using the finelygrained DGCA method, our approach was able to identify individual differential correlations between key gene pairs, and use them to create “bottomup” differential correlation network modules. Further, differential correlation of individual gene pairs works particularly well downstream of higherlevel module detection approaches, such as WGCNA, to perform “topdown” identification of modules with significant differential correlation. This is because parsing up the input gene expression matrix into smaller sets is often critical in order to make sense of the millions or even billions of gene pair combinations that can be analyzed in a typical RNA expression data set. In order to add further to the R programming gene expression analysis suite, future directions for improving DGCA include detection of linear changes in correlation across more than two conditions and integration with differential expression to define genes with differential wiring across conditions [79].
Aside from integration of DGCA and MEGENA, there are several alternative approaches available to identify modules of differentially correlated genes between conditions. One of the earliest studies to address this problem identified gene sets that led to the largest difference in an additive model that scored coexpression of genes in each condition [80]. This modelbased approach allowed for an efficient search for gene sets that are coexpressed in one condition but not the other. A distinct approach called CoXpress first uses hierarchical clustering to identify groups of genes that are coexpressed across conditions, and then leverages sample permutations to measure whether each of these gene sets is significantly differentially coexpressed between conditions [12]. A separate approach called SDC (Subspace Differential Correlation) uses a biclustering approach to identify gene sets that are differentially coexpressed in subsets of each of two conditions [13]. DiffCoEx calculates dissimilarity scores between gene pairs in two or more conditions, and then uses leverages the WGCNA approach to identify modules based on this dissimilarity matrix [44]. An approach called DICER (Differential Correlation in Expression for metamodule Recovery) first calculates a probabilistic score for genewise differential correlation between conditions [10], and then performs hierarchical clustering on these differential correlation scores to identify modules of differential correlation, as well as metamodules of modules that demonstrate differences in correlation across conditions. Another class of approaches also quantifies differential coexpression between conditions given an initial collection of gene sets, including Gene Set Coexpression Analysis (GSCA) [15] and Gene Sets Net Correlations Analysis (GSNCA) [16].
The module detection method described in this manuscript differs from all of these methods in that it does not set out solely to identify modules, but rather to identify individual gene pairs links with significant differentially correlations between conditions. Using this empirically identified set gene pairs, we demonstrated how integration with MEGENA, which has been previously shown to outperform alternatives in coexpression network construction [6], can be used to construct a planar filtered network and identify informative modules. This integration allows for visualization of the individual differential correlation links and their differential correlation classes, as well as the identification of hub genes within each module, which to the best of our knowledge none of the existing methods offer. Notably, DGCA is also complementary with several of the previously described approaches, since DGCA offers functions to calculate the average correlation difference across conditions within a module of genes, both averaging across all genes in the module and averaging across one gene compared to all other genes in the module.
We further sought to comprehensively assess the performance of the differential correlation modules identified by DGCA/MEGENA in comparison with the two most similar methods, DiffCoEx and DICER. First, in our simulation study for detecting differentially correlated modules, DGCA/MEGENA consistently outperformed DiffCoEx and DICER under the more general simulation settings, whereas DGCA/MEGENA has comparable performance with DiffCoEx and DICER under the more extreme circumstance in which a vast majority of gene pairs are differentially correlated. This result makes sense in light of the fact that DGCA/MEGENA adopts a “bottomup” approach by first identifying differentially correlated gene pairs and then detecting modular structures, whereas DiffCoEx and DICER employ a “topdown” approach that relies more heavily on a consistent relationship between many gene pairs within a module across conditions. Therefore, DGCA/MEGENA works well under a wider range of circumstances where DiffCoEx and DICER miss many less densely connected modules. Next, we found that all three of the methods identified differential correlation modules that were significantly enriched for gene signatures related ER+ and triplenegative breast cancer subtypes, though DGCA/MEGENA and DICER identified the most relevant modules. A limitation of this analysis is that although enrichment of diseaserelevant gene sets as a proxy for efficacy in different coexpression module detection has been used before [10], it is unclear whether a more sensitive approach to diseaseassociated module detection is necessarily better when considering the possibility of false positives. Therefore, the problem of optimal differential coexpression module detection on realistic biological data awaits future study, including the identification of a goldstandard data set to compare across methods in an unbiased and biologically meaningful way. However, DGCA/MEGENA identified the highest proportion of unique modules and this strongly suggests that DGCA/MEGENA does represent a novel method for differential correlation module detection. Thus, DGCA/MEGENA increases the diversity of options for this type of analysis.
As an important aspect of DGCA is the use of permutation samples to assess the statistical significance of differential correlations, we offer some guidelines for the use of this approach. It is important to distinguish between permutation analyses that use pooled empirical null distributions as opposed to analyses that use empirical null distributions from each gene or gene pair [81]. For pooled approaches, fewer permutations are needed because information is shared across gene pairs; for example, given a 10,000 gene data set and five permutations, the differential correlation of each actual gene pair is compared to 249,975,000 permuted gene pairs in order to estimate empirical null pvalues. However, this vastly increases the memory footprint required for empirical pvalue calculation and qvalue estimation. Perhaps as a result, some investigators have used only one permutation of the data in such analyses [9]. If these memory constraints limit the number of permutations possible, we suggest that a reasonable approach is to repeat the analysis. For example, we repeated the ER+ vs TN breast cancer differential correlation analysis three times and found that the number of significantly identified differentially correlated gene pairs at both q < 0.05 and q < 0.01 were within acceptable limits (within 30% of one another) for the purpose of downstream analyses on gene sets. Although the above reasoning applies to cases with many gene pairs, heavy filtering of the input data and/or differential correlation calculations of only one gene compared to all others leads to far fewer empirical null statistics. For example, five permutations of the 295 gene pairs for the p53 differential correlation analysis would lead to only 1475 permuted gene pairs for use in estimating empirical null pvalues, which is why we used more permutations (10,000) in this case. Nonpooled approaches are commonly used on the data sets with reduced dimensionality, such as the module level, or in our case, in the comparison of the average correlation of each gene compared to all other genes in two conditions. Nonpooled permutation approaches commonly use on the order of 100 or 1000 permutations [82, 83], and we use 1000 permutations to balance interpretability with computational efficiency. Notably, the number of permutations in nonpooled approaches delineates a clear lower bound on the empirical pvalue that can be ascertained from the analysis. Overall, the number of permutations used in DGCA for pooled reference distributions depends on the total number of empirical gene pairs under consideration, while for nonpooled reference distributions it depends on the desired sensitivity of the lower bound of empirical pvalues.
Conclusions
Despite the theoretical advantages of studying differences in the correlation of key gene pairs between conditions, differential coexpression or differential correlation is not yet widely utilized, partially due to the lack of effective and biologyoriented software packages that enable biological meaningful findings. Our R package, DGCA, provides a comprehensive and userfriendly tool for not only calculating differential correlation between two conditions but also performing a number of downstream functional analyses including categorization of differential correlations, identification of multiscale differential correlation clustering structures, detection of key differential correlation hubs, and enrichment tests of functional pathways in differential correlation categories and clusters. Our differentially correlated gene pair and module detection simulation studies show that DGCA and DGCA/MEGENA perform favorably compared to the existing alternative methods. Our application to breast cancer data demonstrates that DGCA is capable of unlocking novel insights into real biological problems. This userfriendly, effective, and comprehensive software tool will greatly facilitate the application of differential correlation analysis in many biological studies and thus will help identification of novel signaling pathways, biomarkers, and targets in complex biological systems and diseases.
Software and data availability
The DGCA R package will be available for download from CRAN (the Comprehensive R Archive Network, https://cran.rproject.org/), a repository of opensource software. Source code and other files are available at https://github.com/andymckenzie/DGCA.
Below is R code for using the DGCA package to analyze a subset of a publicly available singlecell RNAseq data set.

Step 1. Load the DGCA R package. > library(DGCA)

Step 2. Read in the gene expression matrix. > data(darmanis)

Step 3. Read in the design matrix. > data(design_mat)

Step 4. Perform the basic differential correlation analysis for the gene RTN4 between oligodendrocytes and neurons. > dgca_res = ddcorAll(inputMat = darmanis, design = design_mat, compare = c(“oligodendrocyte”, “neuron”), adjust = “perm”, nPerm = 10, splitSet = “RTN4”)

Step 5. View the top 20 genes differentially correlated with RTN4 as well as their differential correlation statistics. > head(dgca_res, 20)

Step 6. Visualize the correlation in each condition between RTN4 and its top differentially correlated gene pair in this data set. > plotCors(inputMat = darmanis, design = design_mat, compare = c(“oligodendrocyte”, “neuron”), geneA = “RTN4”, geneB = “COX6A1”)
For a more detailed explanation about package usage, please read the R help documents or vignettes. > help(package = “DGCA”); vignette(package = “DGCA”)
The Cancer Genome Atlas (TCGA) datasets supporting the conclusions of this article are available in the National Cancer Institute's Genomic Data Commons, https://gdc.cancer.gov/.
Abbreviations
 DGCA:

Differential Gene Correlation Analysis (R package name)
 dz:

Difference in zscores
 ER+:

Estrogen ReceptorPositive (breast cancer subtype)
 FDR:

False discovery rate
 GOC:

Gain of correlation
 LOC:

Loss of correlation
 p53:

tumor protein 53 protein isoform
 TCGA:

The Cancer Genome Atlas
 TN:

Triple Negative (breast cancer subtype)
 TP53:

Tumor Protein P53 gene.
